Ultrasonic Nonwoven Bag Machine

You are the position of:Home > PRODUCTS > Ultrasonic Nonwoven Bag Machine

Manual nonwoven bag machine

Details

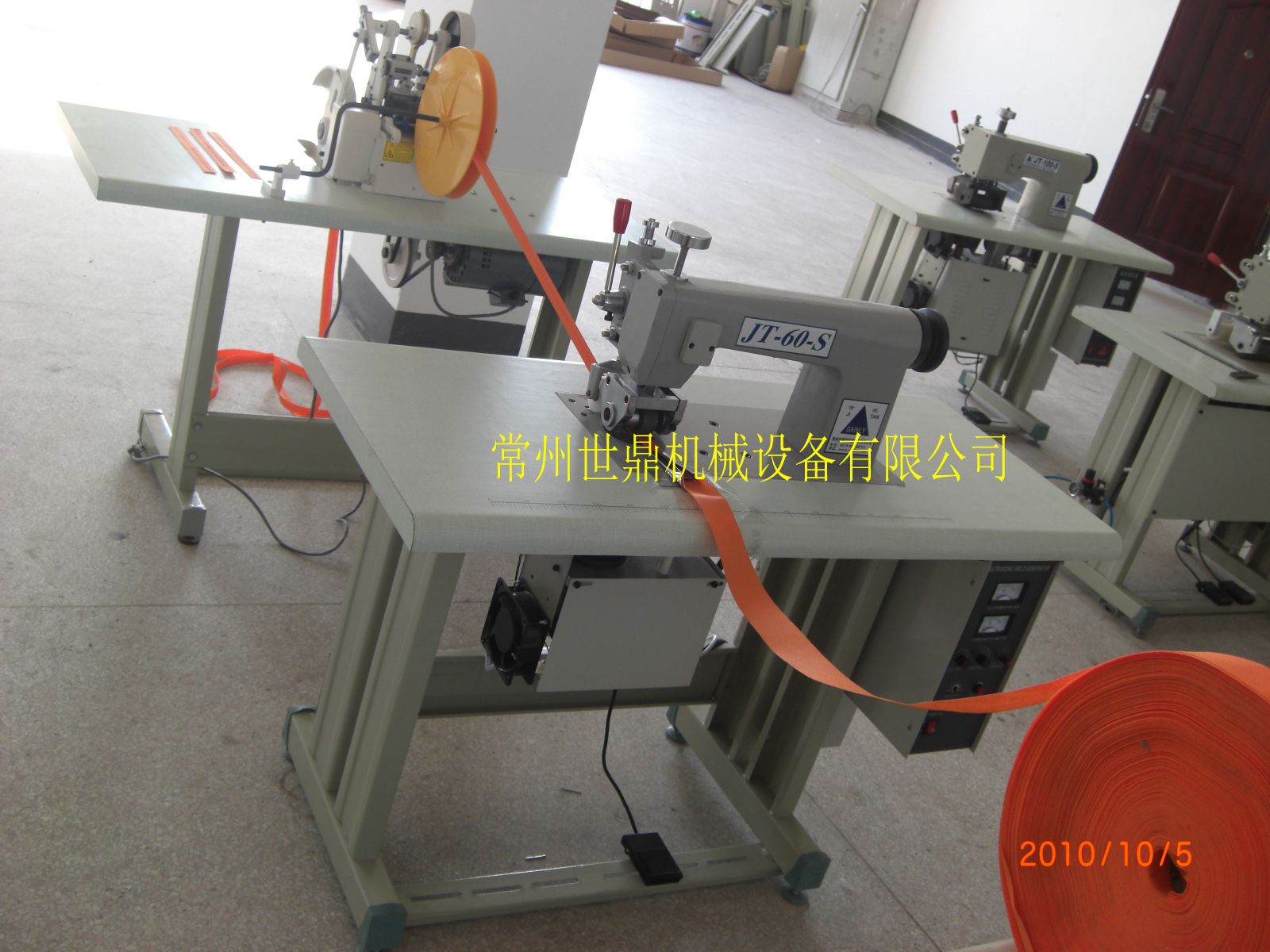

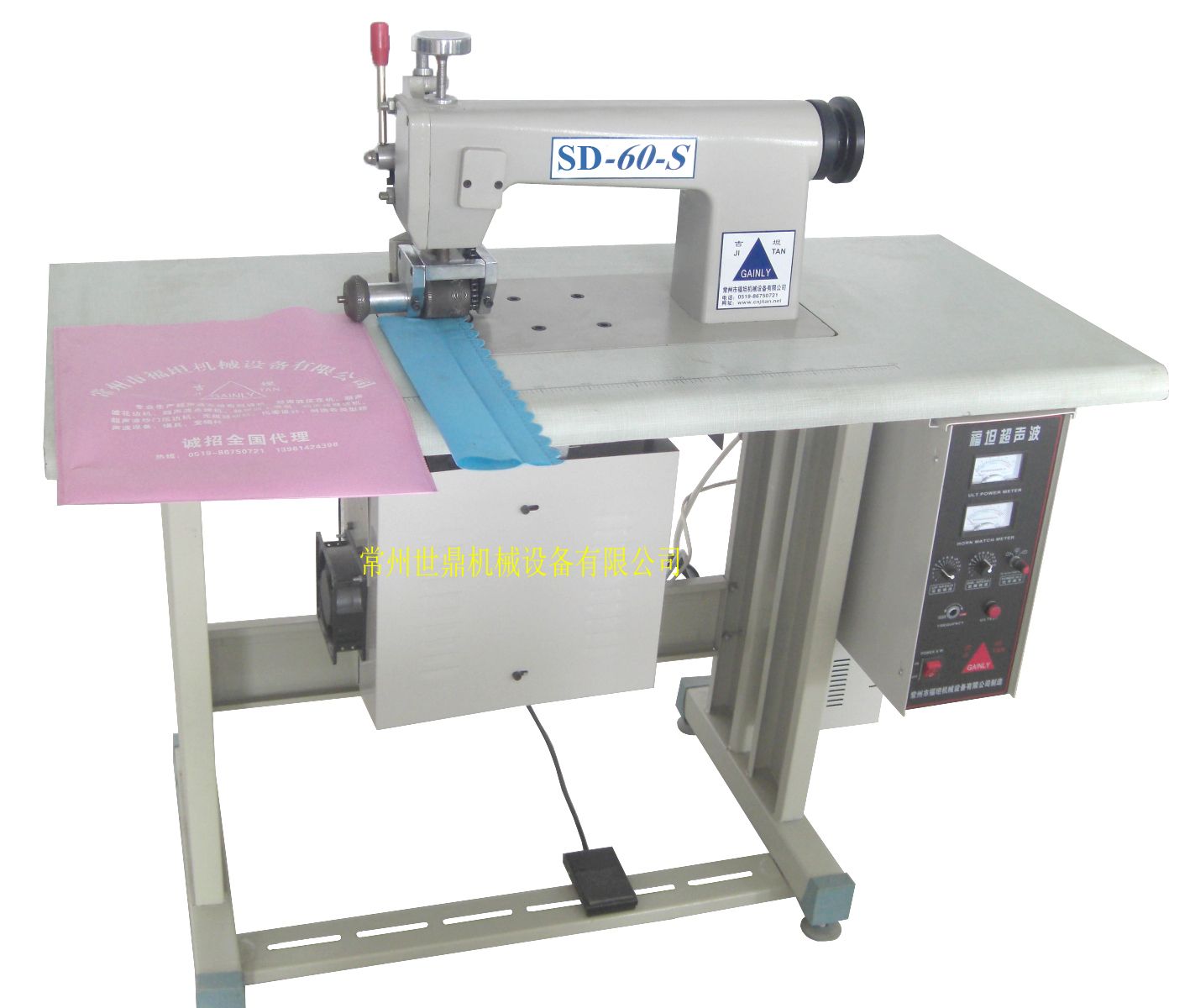

Nonwoven bag sewing machine SD-60-S

Technical parameter

Source power	220v±5v or 110v avaliable
Input power	1800-2500w
Output frequency	20khz
Working speed	0-20m/min

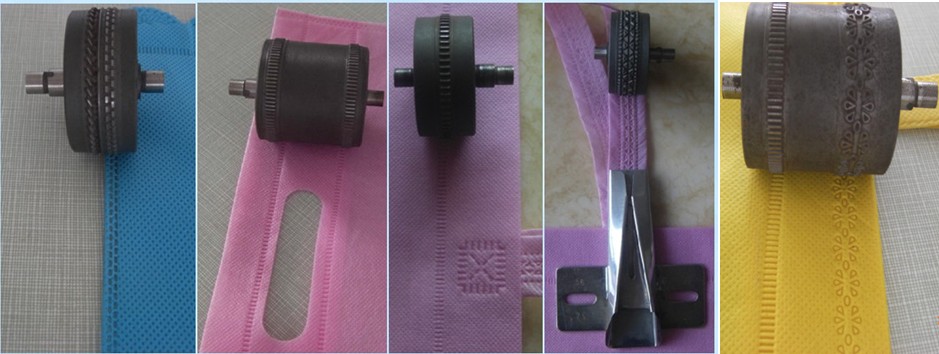

Roller size	width:0-60mm,diameter φ50
Dimension	12006001200mm
Net weight	80kg

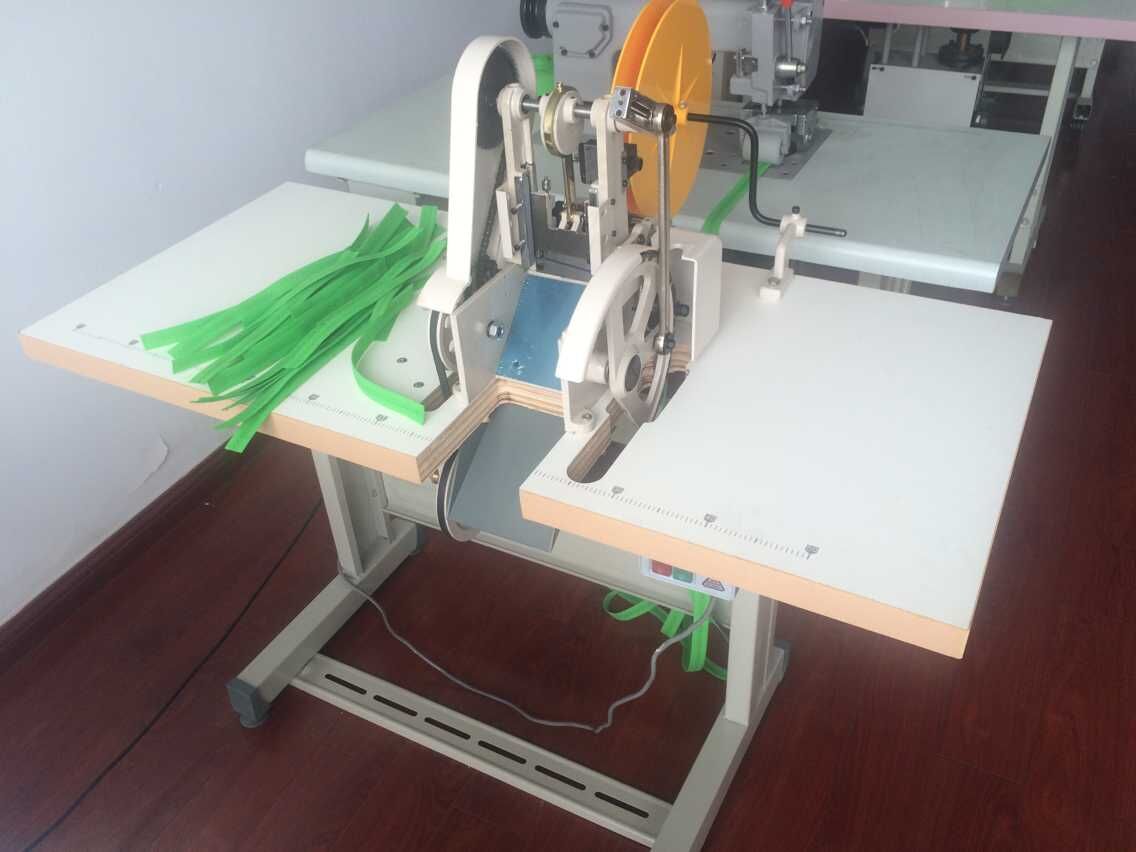

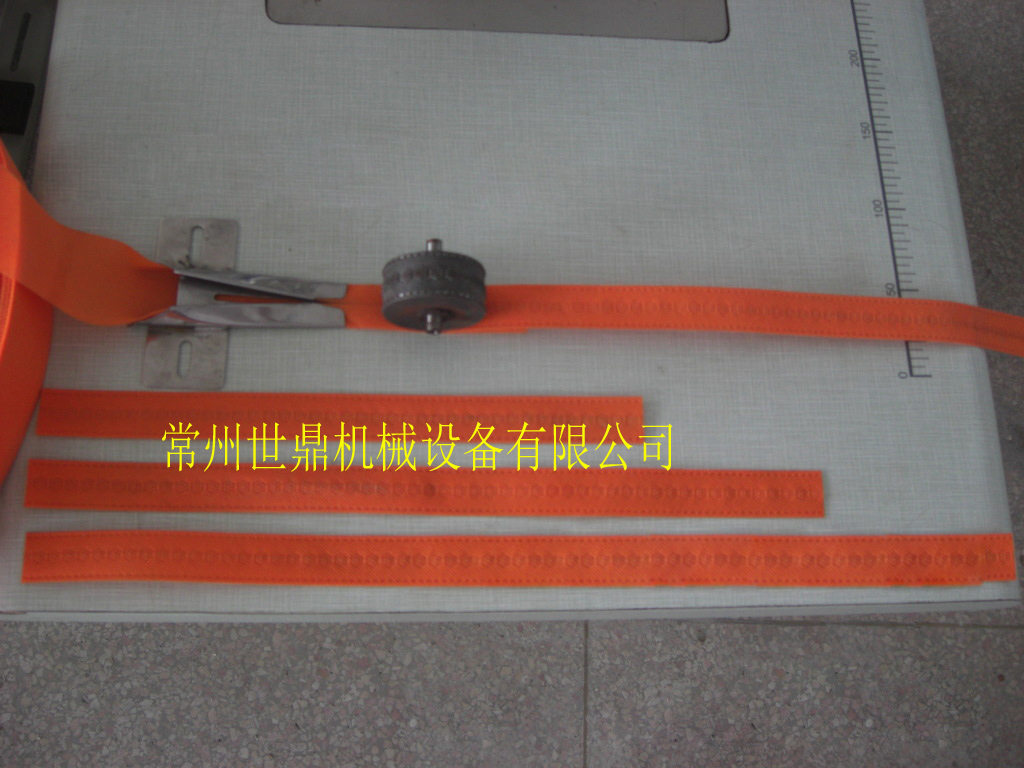

2- Bag handle cutting machine SD-QD

Technical Parameter

Power	220V
Cutting width	0-50mm
Cutting length	0-1500mm
Working speed	0--30pcs/min
Dimension(L×W×H)	12006001200mm
N.W (kg)	40KGS

Apply to cut the whole bag handle into pieces of equal length

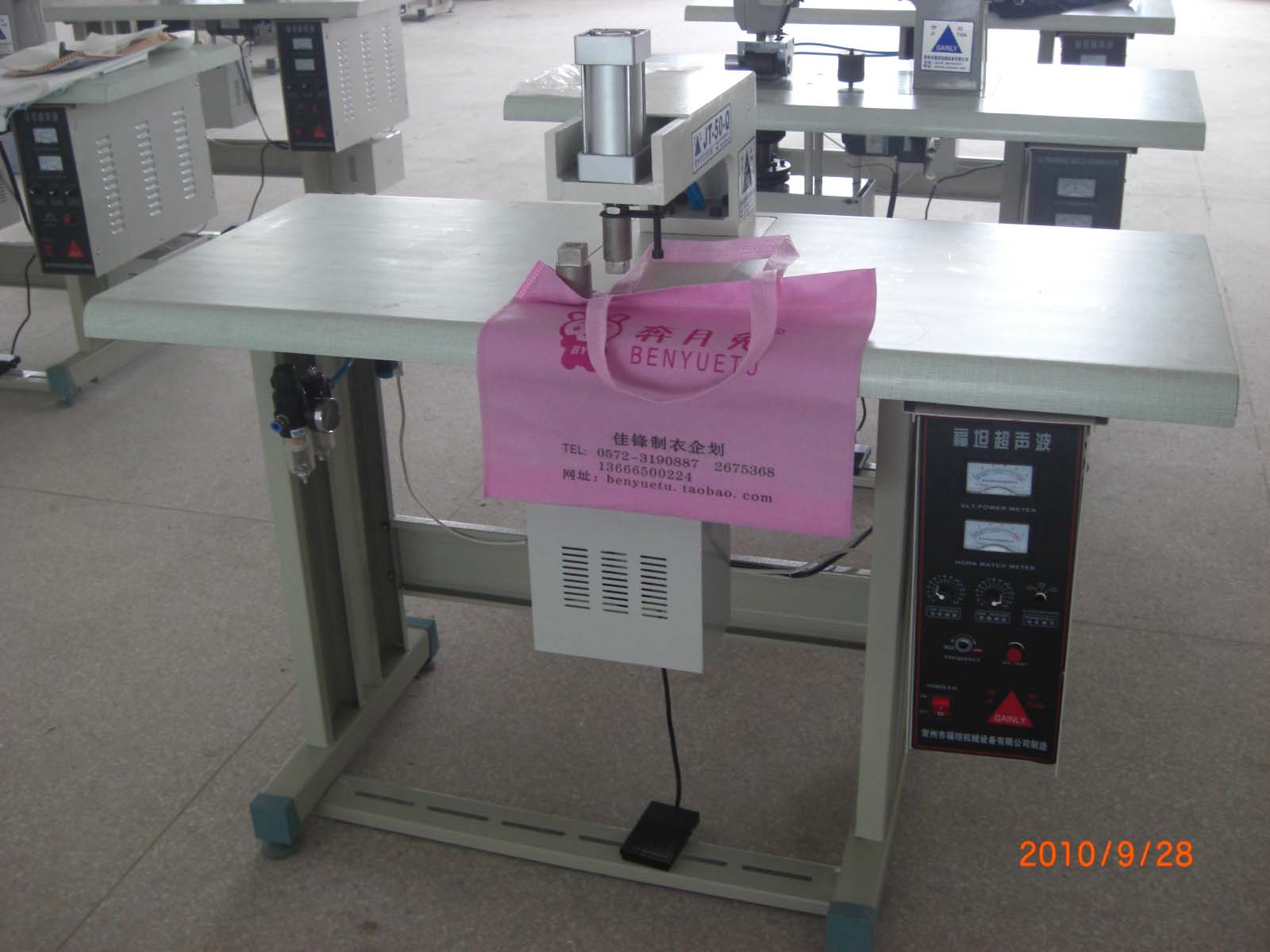

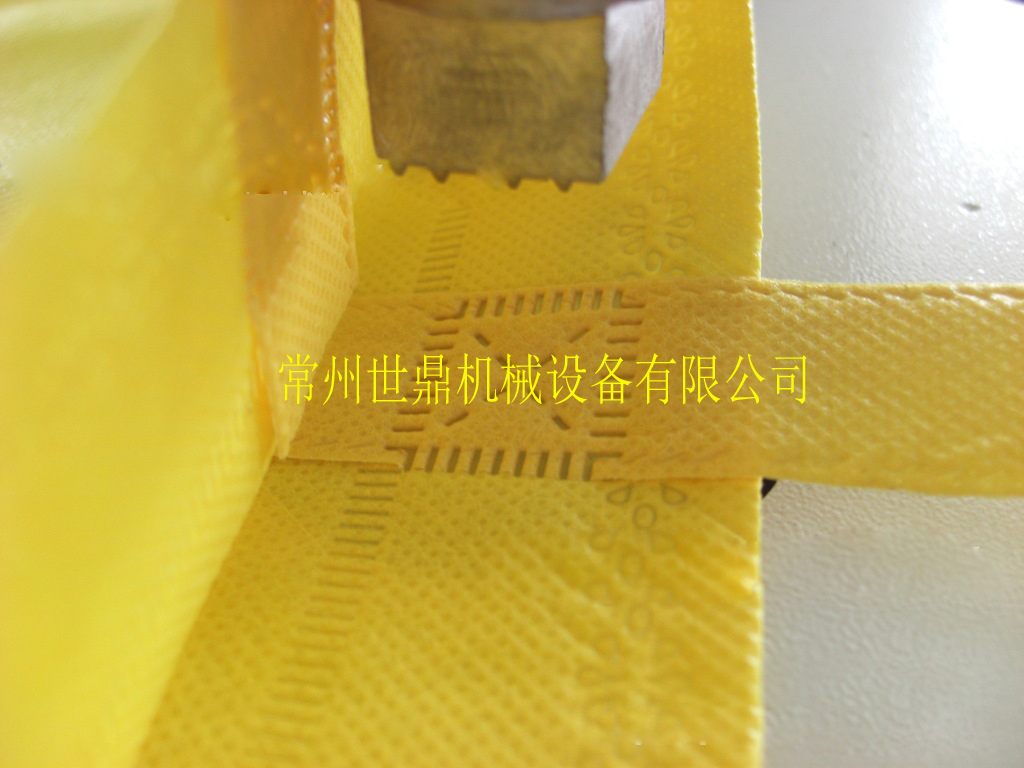

3- Bag handle welding machine

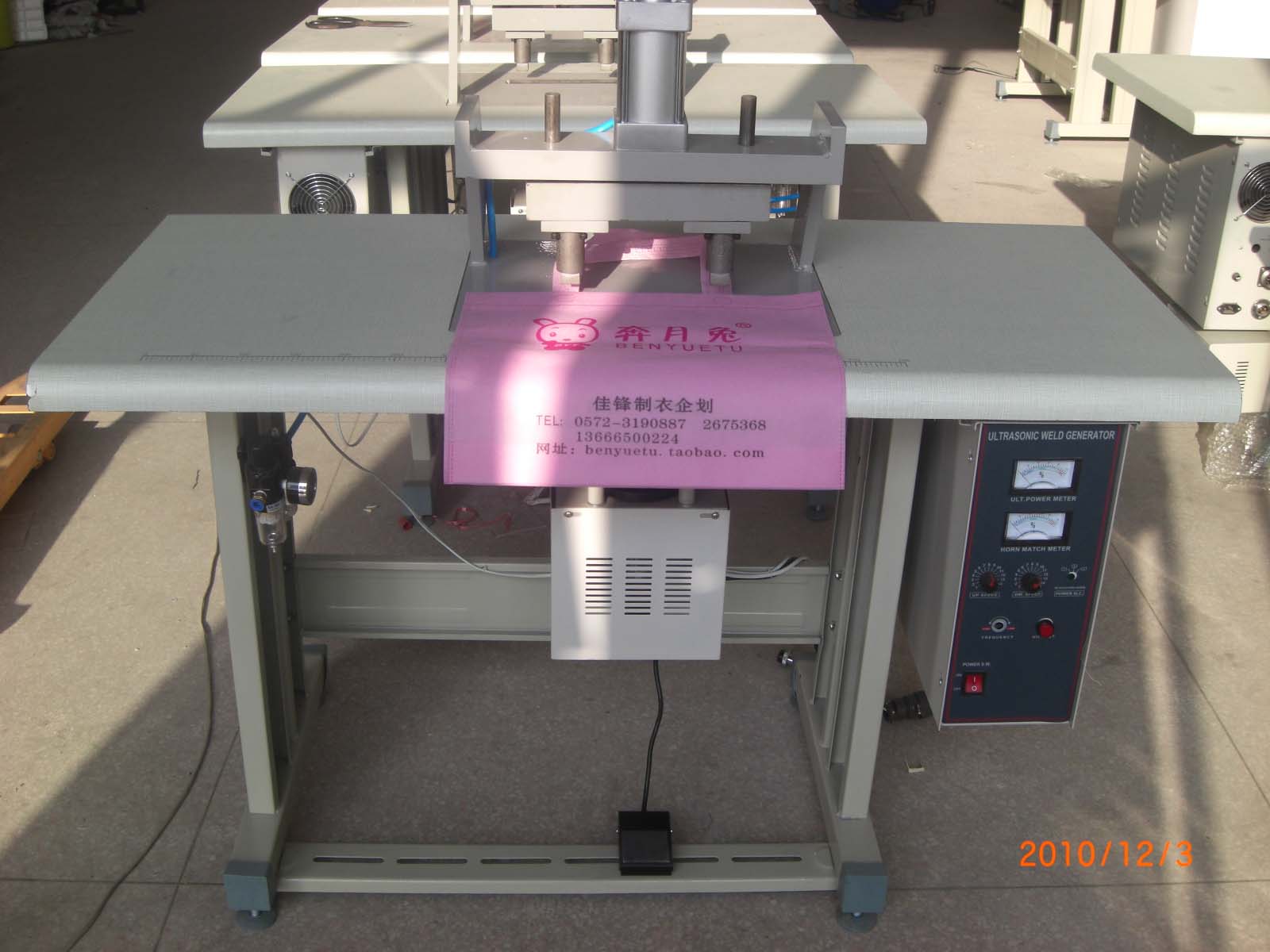

Single spot SD-50-Q Double spot SD-200-Q

Specification	SD-50-Q
Output(W)	2000W
Frequency (KHz)	20KHz
Voltage(V)	220V
Working speed	0-50times/min
Air press(bar )	Pressure bound 1-7bar
Welding area (mm)	Ø50mm
Compressor	2HP
Dimension (L×W×H)mm	12006001100mm
N.W (kg)	70kg

Specification	SD-200-Q
Output(W)	2000W
Frequency (KHz)	20KHz
Voltage(V)	220V
Working speed	0-50times/min
Air press(bar )	Pressure bound 1-7bar
Welding length (mm)	200mm
Compressor	2HP
Dimension (L×W×H)mm	12006001200mm
N.W (kg)	90kg

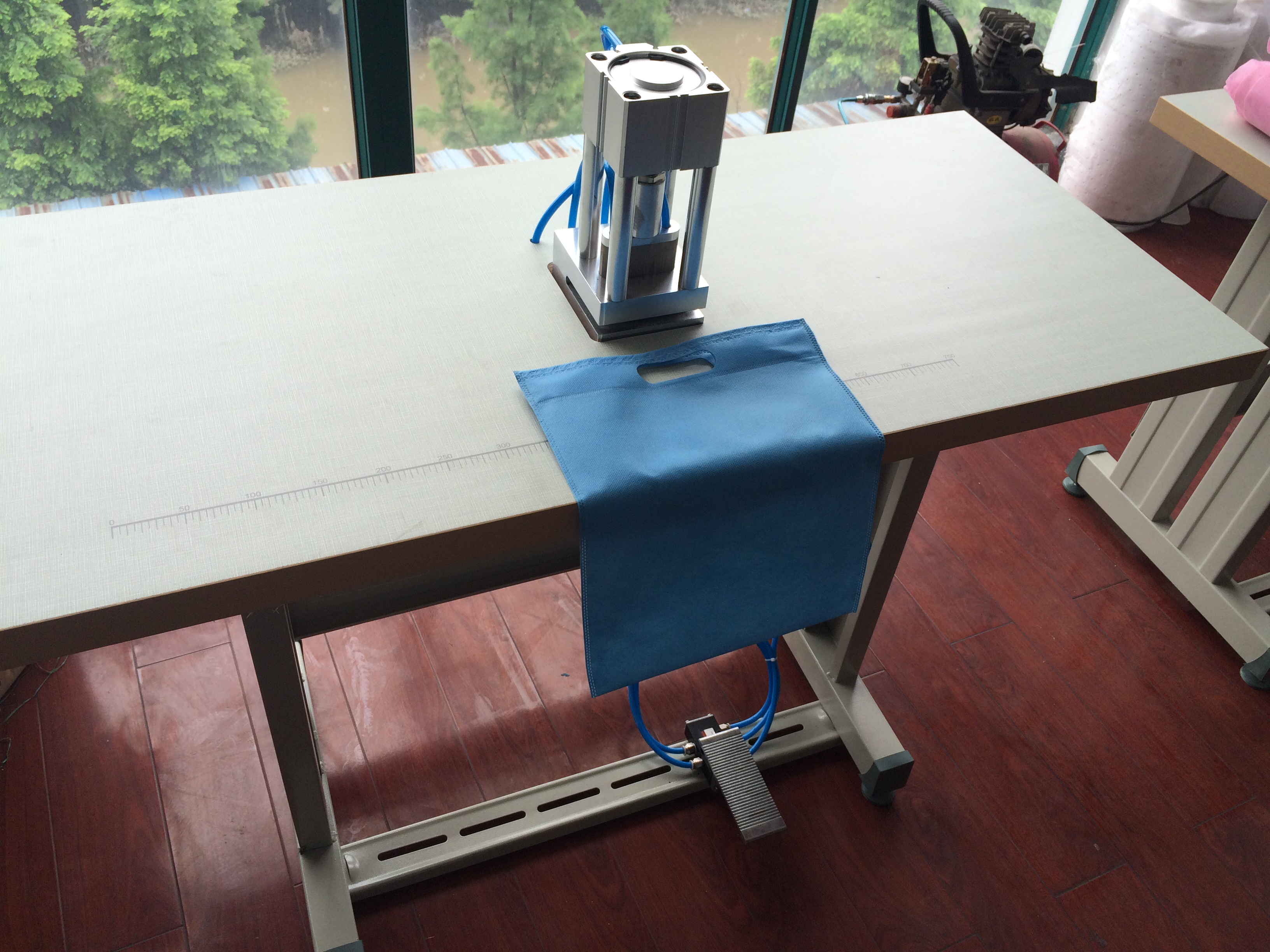

4- Hole punching machine SD-DK

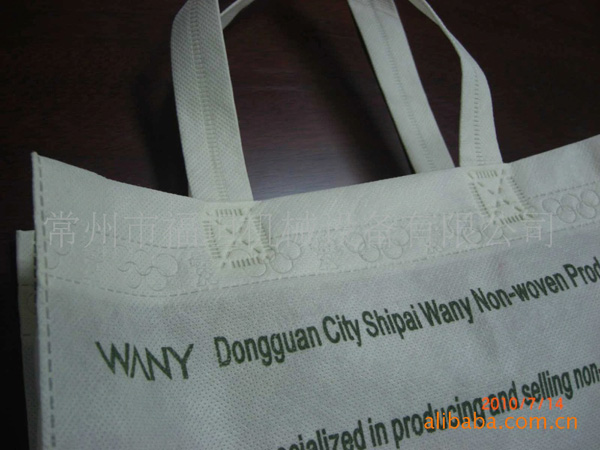

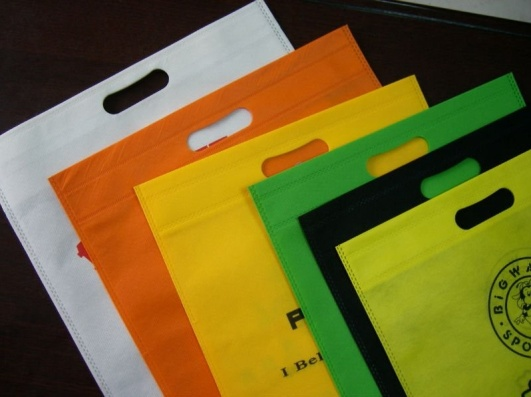

Finished bag
