Fabric Pleating Machine

You are the position of:Home > PRODUCTS > Fabric Pleating Machine

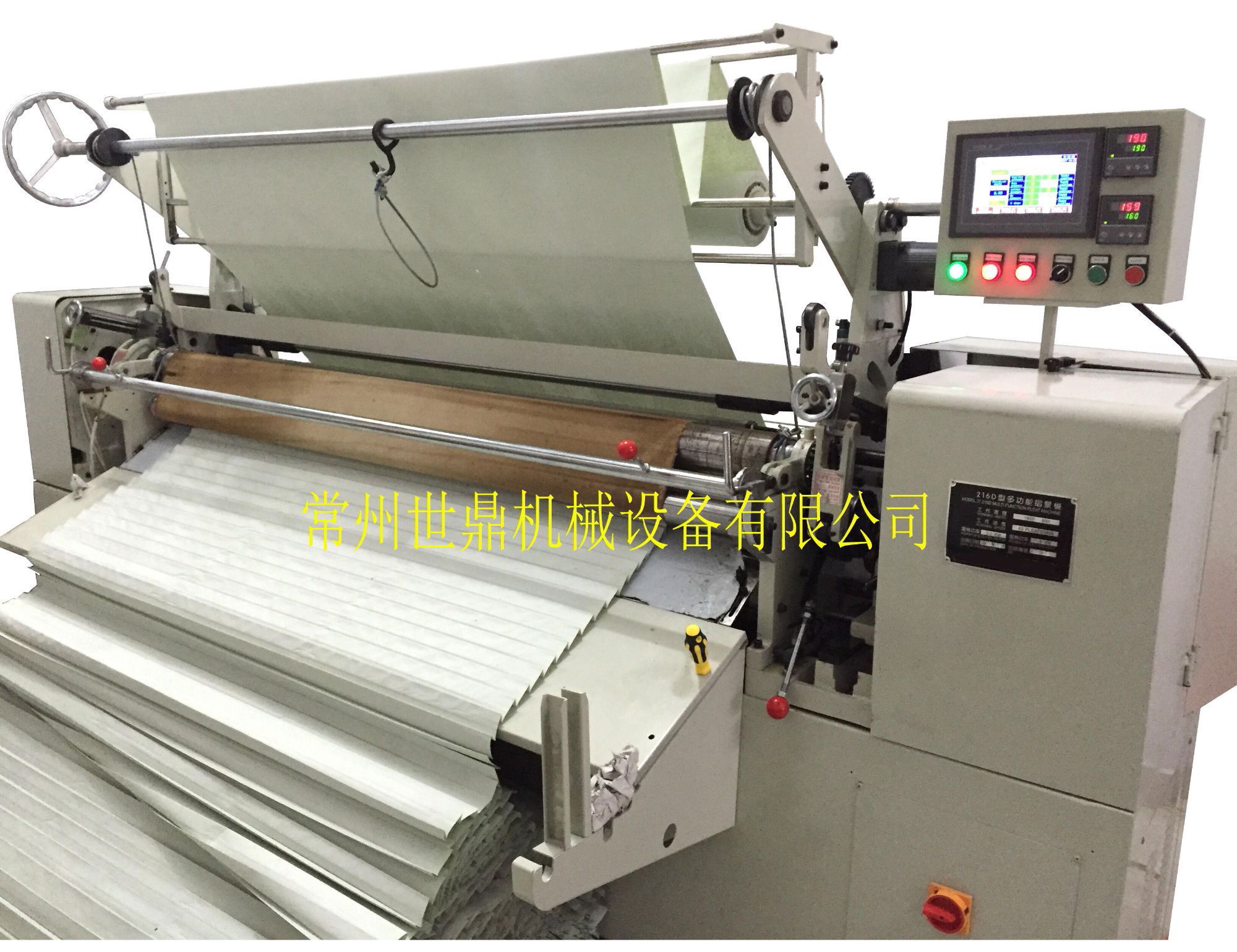

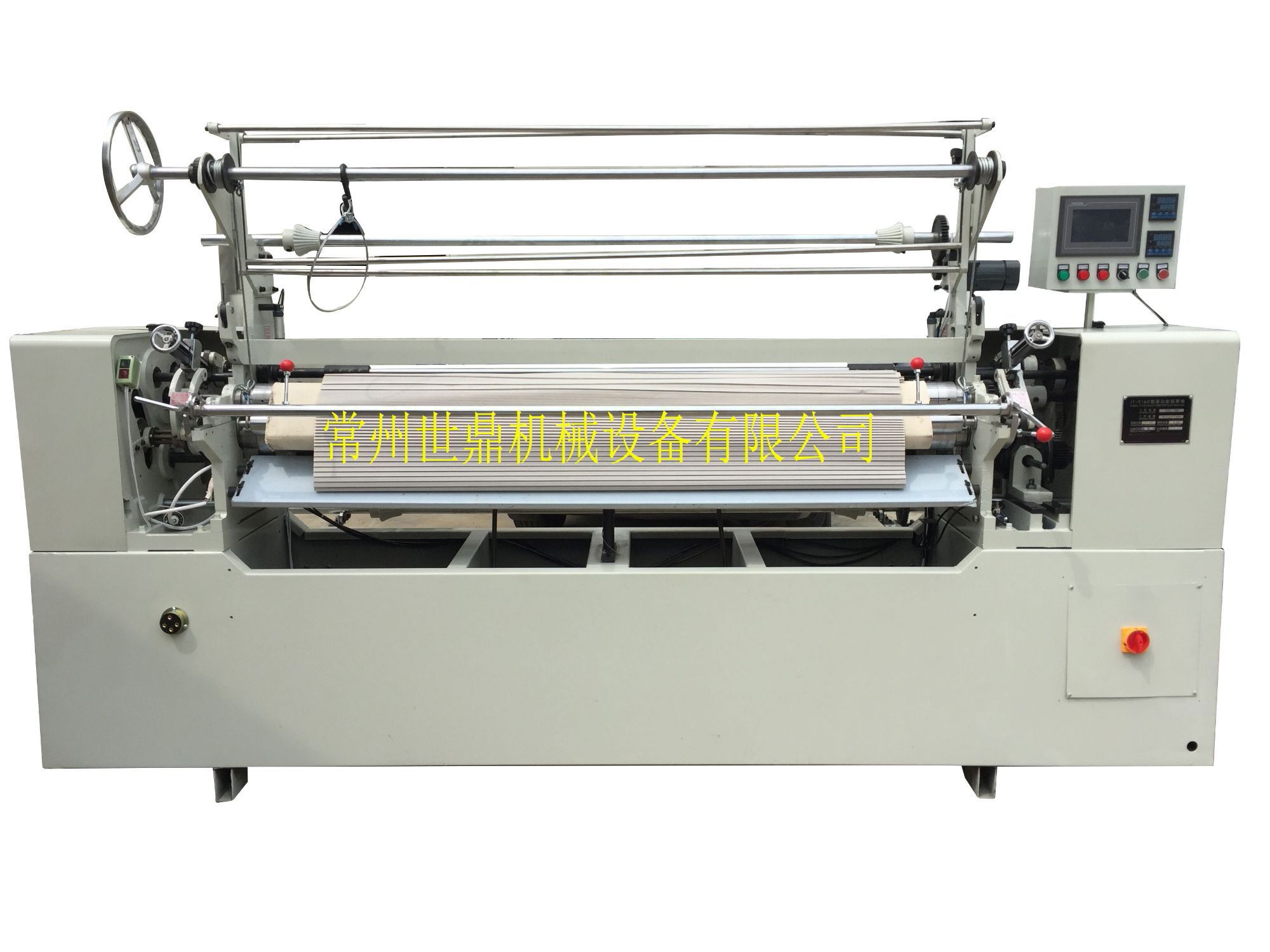

Computer-controlled Pleating Machine 216D/217D

Details

MAIN FEATURE

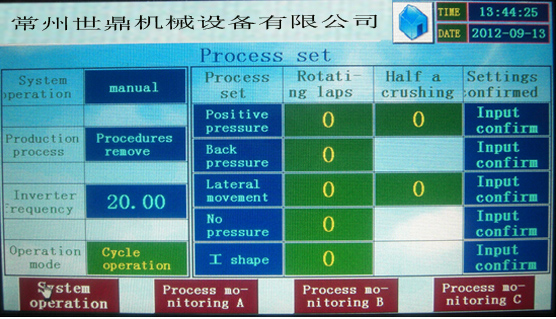

1) It’s one of the latest computer & mechanical equipment, computer control system, simple operation.

2) It can make vertical patterns, wave patterns, bamboo leaf patterns, etc of synthetic fabrics, blended fabrics, leather… for clothing, bedding and various decorations.

3) Direction & number of pleats can be set in computer freely and easily, more pleating designs available



SPECIFICATION


Working width

0~1700MM

Pleating speed20~80 pleats/minute

Pleating height

2~5MM

Pleating width

≧2M

Power supply

380V (220V avaliable)

Electric consumption

10.0KW

Dimensions

3250×1600×1800MM

Net weight

1500kgs





SAMPLES
